Guangdong Metal Corporation is a leading Pre-insulated Copper Foil supplier and manufacturer.

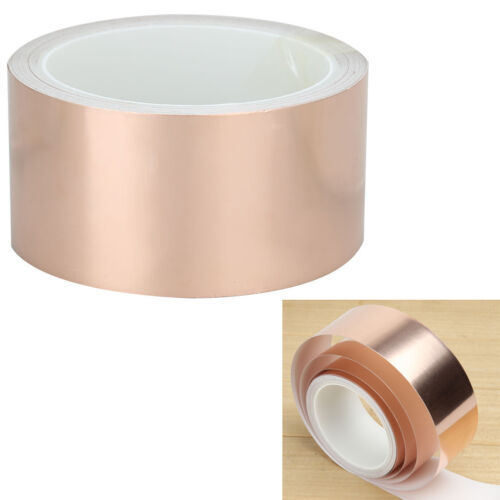

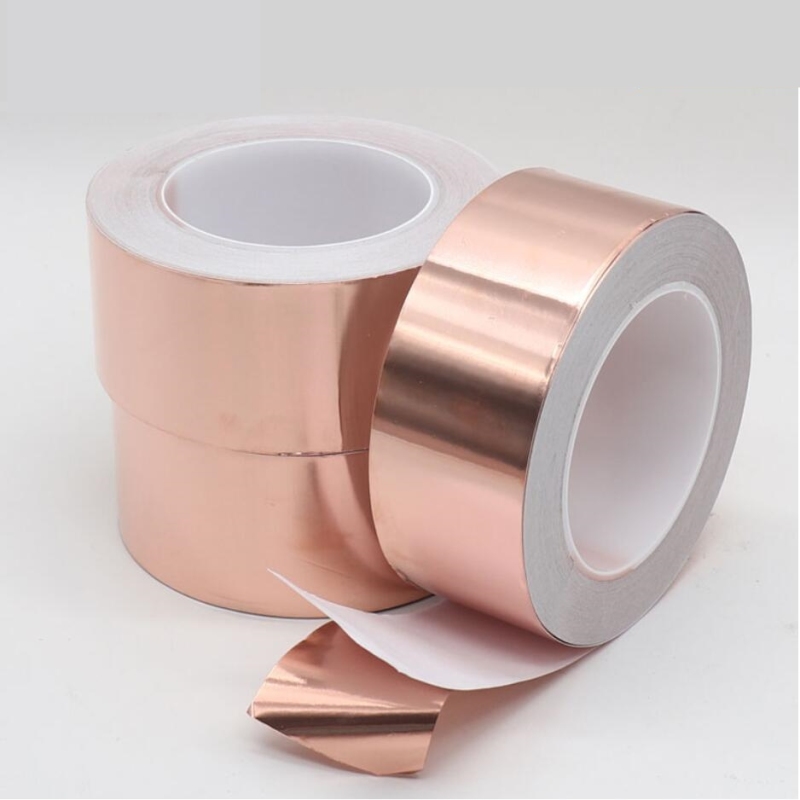

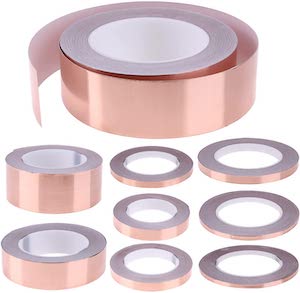

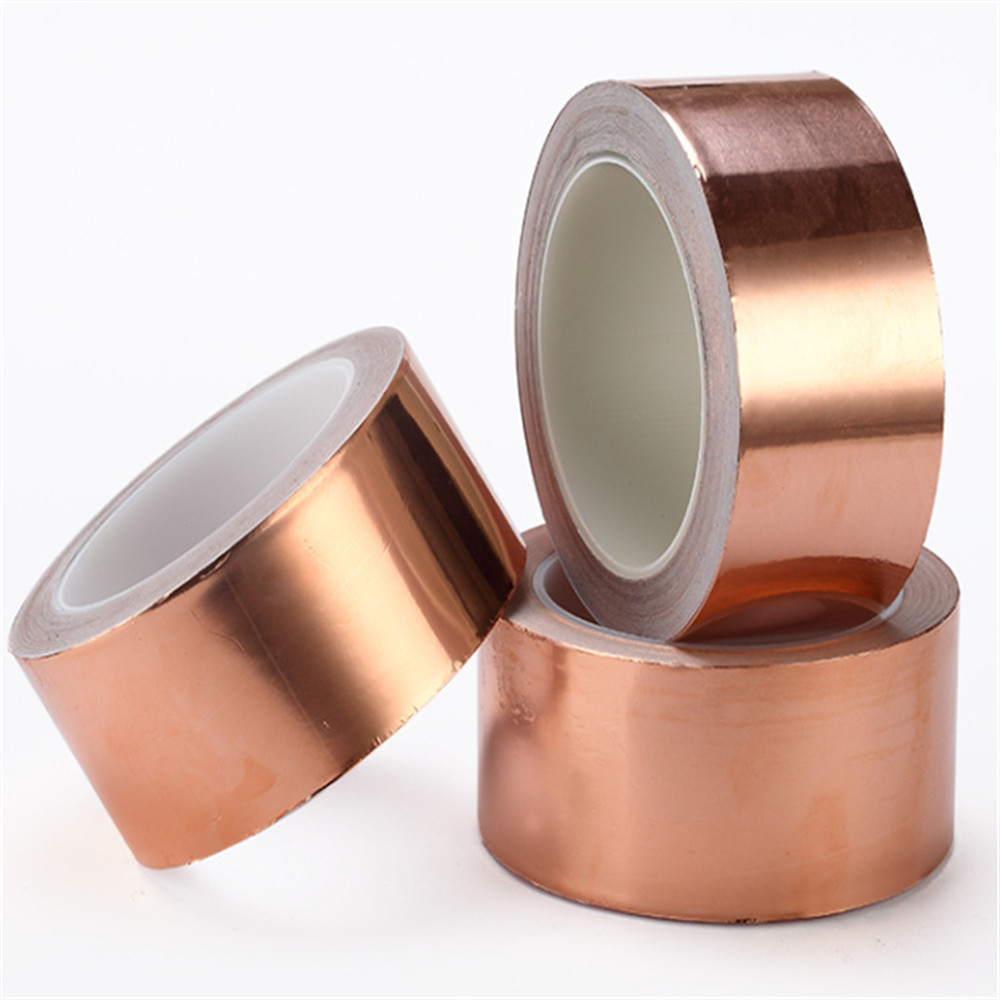

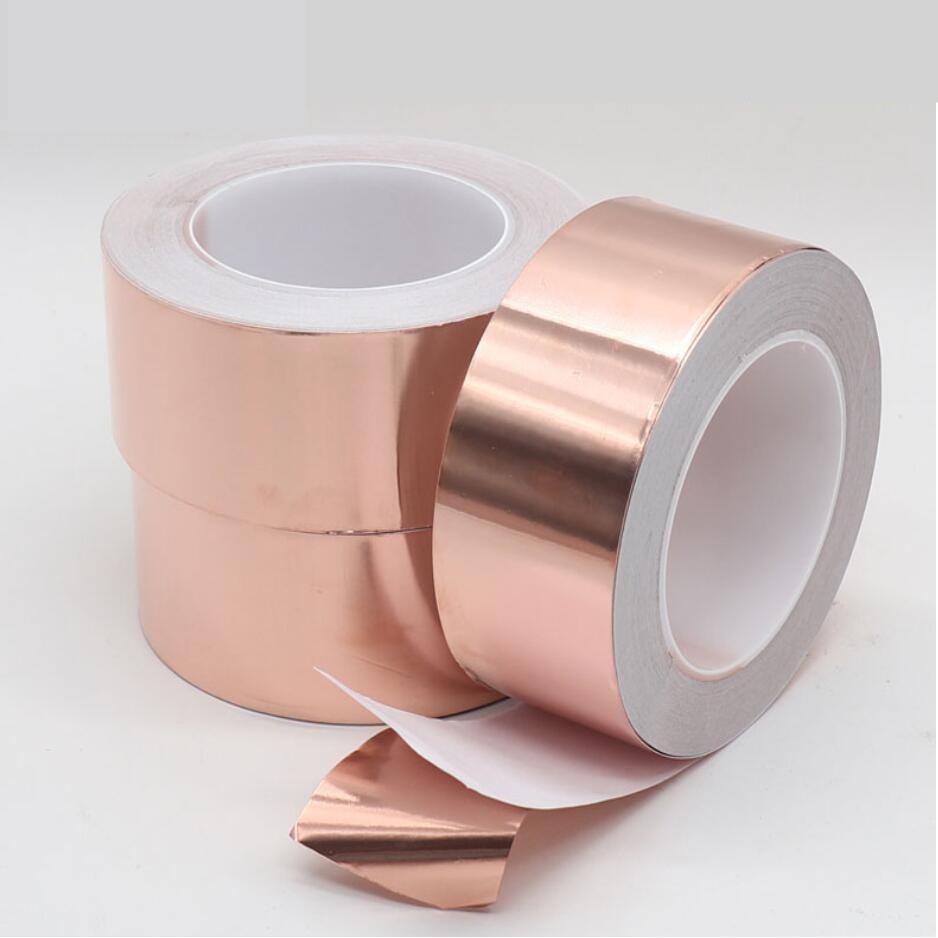

Copper foil laminated with polyester (Cu-PET) has higher conductivity and electromagnetic insulation. High quality anneal copper foil laminated with polyester film by using a unique glue formula provides above 15% elongation. Mainly used for coaxial cables, signal cables, control cables, data cables, instrumentation cables and other communication cables that require higher shielding insulation.The Pre - insulated Copper Foil is an accessory with a golden yellow appearance, uniform color and no taste. Applications: Communication cable, AV flexible cable, FFC cable and other wire and cable.
The copper foil which purity more than 99.9% is mainly used in electromagnetic shielding and anti-static, the conductive copper foil is placed on the substrate surface, combined with the metal substrate, has excellent conductivity, and provides electromagnetic shielding effect.
One side is copper, other side has insulating paper; In the middle is an imported pressure-sensitibe acrylic adhesive. Copper foil had strong adhesion and elongation. It is mainly due to copper foil’s excellent electrical properties that during processing it can have a good conductive effect. Secondly we use adhesive coated nickel to shield electromagnetic interference on the surface of copper foil.
1) Copper foil purity is higher than 99.95%
2) The function is to eliminate electromagnetic interference(EMI)
3) Electrostatic charge will be grounded, strongly bonded, good conductive propertied
4) Reduces the necessary cross section of copper because of optimal shape in comparison to round wires
5) Ease of getting admittance for a winding construction due to the optimal safety
6) More reliable due to reduction of vibration, better thermal conductivity
7) Prevents danger of short circuit between primary and secondary windings
1) Various types of transformers
2) Mobile phones
3) Computers
4) Coaxial cables
5) Signal cables
6) Control cables
7) Instrumentation cables
8) LAN cables
9) Connectors
10) Data communication cables
Specifications of Copper Foil Laminated with Polyester Film:
1) Inner diameter: 52mm/58mm/76mm
2) Outer diameter: 200mm-400mm
3) Width: ≥10 mm
4) Types: Double sided, Single sided
5) Material: copper foil, PET
6) Color: nature (copper)
Packaging of Pre-insulated Copper Foil:
Guangdong Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Guangdong Metal Standard
2) Customization
Applications of Pre-insulated Copper Foil:
1) Various types of transformers
2) Mobile phones
3) Computers
4) PDA, PDP, LCD monitors
5) Coaxial cables
6) Signal cables
7) Control cables
8) Instrumentation cables
9) LAN cables
10) Data communication cables
11) Notebook computers, printers and other domestic consumer products
