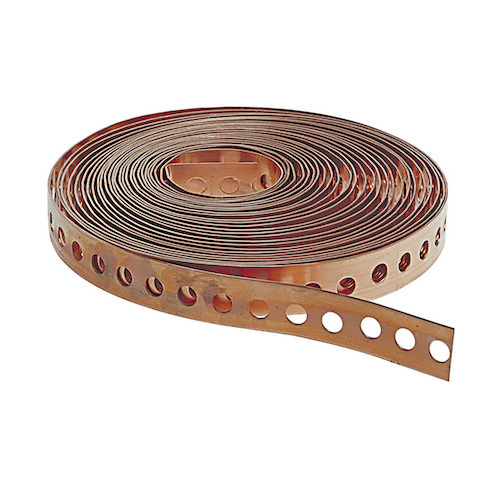

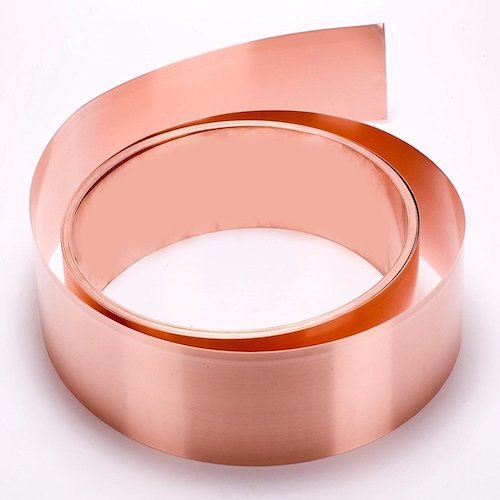

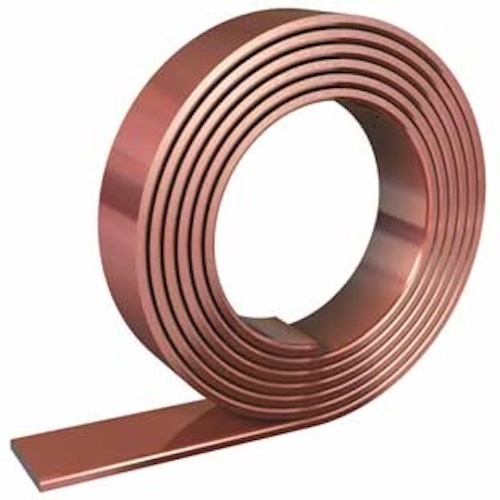

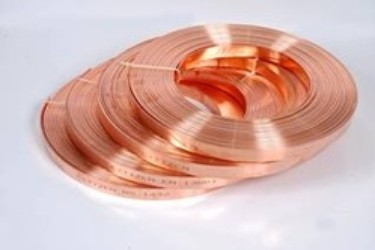

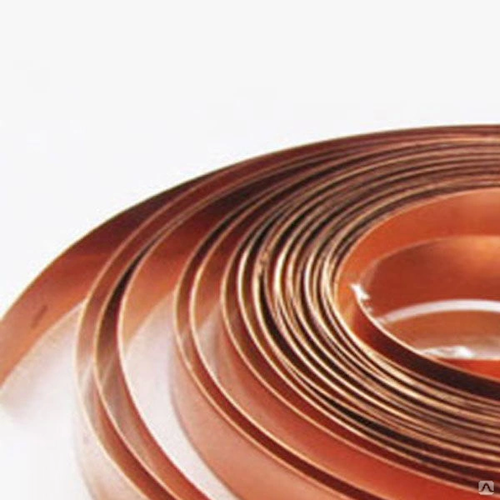

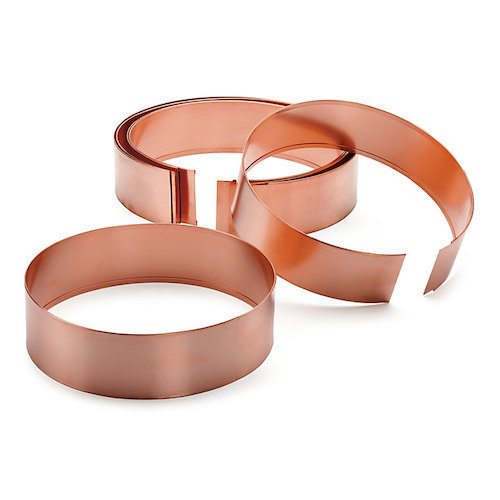

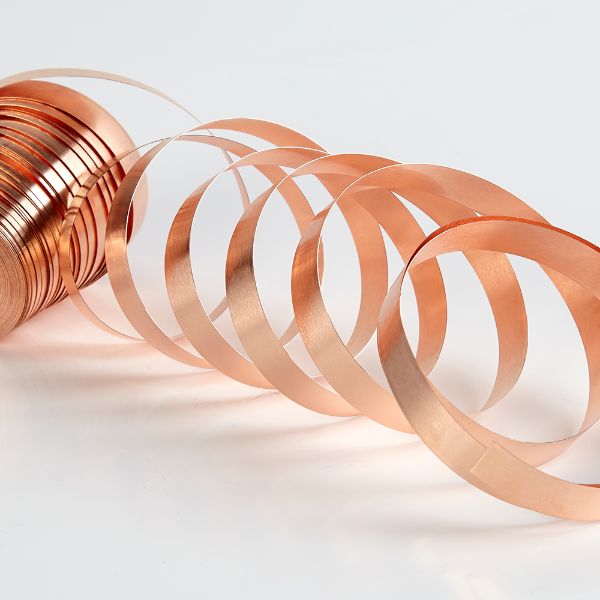

Guangdong Metal Corporation is a leading Copper Earth Strip / Tape / Earthing Strip manufacturer and supplier.
Copper earth strip / tape / earthing strip is referred to as copper grounding bar, also known as copper busbar, it is a long conductor made of copper, rectangular or chamfered (rounded) rectangle, made of aluminum material. The so-called aluminum row is produced to carry current and connect electrical equipment in the circuit. At present, the quality requirements of the copper earth strip are implemented in the GB/T5585.1-2005 standard.
It is a kind of high-current conductive product, suitable for high and low voltage electrical appliances, switch contacts, power distribution equipment, busway and other electrical engineering, and is also widely used in metal smelting, electroplating, chemical caustic soda and other super-current electrolysis smelting projects.
Typically, copper earth tapes are used as HV electrodes for standard earthing arrangements on ground mounted LV MV HV substations – the earth tape functions as a perimeter electrode installed to the outer edges of the foundation in direct contact with the soil and connected to the switchgear earth bars. The copper tape will provide protection to exposed and normally un-energised conductive metalwork within the substation perimeter fence including panels, kiosks, lighting towers and oil tanks.
If you want to know more about our copper products or Copper Earth Strip / Tape / Earthing Strip price please feel free to contact us, we will reply you within 24 hours.
1) Thickness: 0.15mm - 3.0mm
2) Width: 610mm max. Coil weight: 3 ton Max
3) Normal Sizes:
3mm*25mm*50m
3mm*25mm*15m
6mm*50mm*50m
(or customize according to your needs)
4) Grade: C1100, C1020
5) Chemical Composition: C1100: Cu >99.90%, C1020:
Cu >99.96%
6) Oxygen content: C1100: O < 500ppm, C1020: O < 50ppm
7) Temper: O, 1/4H, 1/2H, H
O: HV<70; 1/4H:HV 65-85; 1/2H:HV 80-100; H:HV >100
8) Electric Conductivity at 20℃: C1100/C1020 >97%;
1) High corrosion resistance
2) High electrical conductivity and durability
3) High precision and low cost
4) Narrow size tolerances
5) Low-fat, smooth surface
6) Concentrated materials composition
7) High dimensional stability
8) Mechanical and physical properties can be controlled
9) Wide range of sizes and almost zero maintenance
10) Excellent malleability, can be forged the broadest, thinnest and longest, etc.
1) Copper Earth Strip/ Tape for Melting Furnace
2) Copper Earth Strip/ Tape for Hot Rolling Mill
3) Copper Earth Strip/ Tape for Milling Line
4) Copper Earth Strip/ Tape for 4 High /6 High Reversing Cold Rolling Mill
5) Copper Earth Strip/ Tape for 12 High /20 High Finish Rolling Mill
6) Copper Earth Strip/ Tape for Pickling Line
7) Copper Earth Strip/ Tape for Degreasing Line
8) Copper Earth Strip/ Tape for Annealing Facility
9) Copper Earth Strip/ Tape for Tension Leveler Line
10) Copper Earth Strip/ Tape for Roll Grinding Machine
Parameters of Copper Earth Strip/Tape:
Manufacturing of Copper Earth Strip/Tape
Packaging of Copper Earth Strip/Tape:
Guangdong Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.
1) Guangdong Metal Standard
2) Customization
Our Service
To meet the entirety of our customers business needs, Guangdong Metal offers its services as a “One-Stop Shop” for business services including Purchasing, Value-Added Manufacturing, Packaging/Labeling, and Delivery. Guangdong Metal prides itself on achieving superior results and satisfying customer needs. In this, we earnestly strive to fulfill our role as trustworthy and reliable supplier of business services throughout the entire world.
Our Value-Added Manufacturing Services not only save our customer time from having to out-source, but also spare them the cost of dealing with several disparate shops and deadlines.
Applications of Copper Earth Strip/Tape:
1) Copper Earth Strip/ Tape for Commutators
2) Copper Earth Strip/ Tape for Traction Motors
3) Copper Earth Strip/ Tape for Connectors
4) Copper Earth Strip/ Tape for Earthing
5) Copper Earth Strip/ Tape for Integrated circuit lead frame
6) Copper Earth Strip/ Tape for Electrical Components
7) Copper Earth Strip/ Tape for Switchgear Products
8) Copper Earth Strip/ Tape for Electrical Contacts
9) Copper Earth Strip/ Tape for Railway Electrification
10) Copper Earth Strip/ Tape for Panel Boards
11) Copper Earth Strip/ Tape for Power Transformers
12) Copper Earth Strip/ Tape for Building & Constructions, etc.
Main equipment for Copper Earth Strip/Tape:
1) Copper Earth Strip/ Tape for Melting Furnace
2) Copper Earth Strip/ Tape for Hot Rolling Mill
3) Copper Earth Strip/ Tape for Milling Line
4) Copper Earth Strip/ Tape for 4 High /6 High Reversing Cold Rolling Mill
5) Copper Earth Strip/ Tape for 12 High /20 High Finish Rolling Mill
6) Copper Earth Strip/ Tape for Pickling Line
7) Copper Earth Strip/ Tape for Degreasing Line
8) Copper Earth Strip/ Tape for Annealing Facility
9) Copper Earth Strip/ Tape for Tension Leveler Line
10) Copper Earth Strip/ Tape for Roll Grinding Machine
