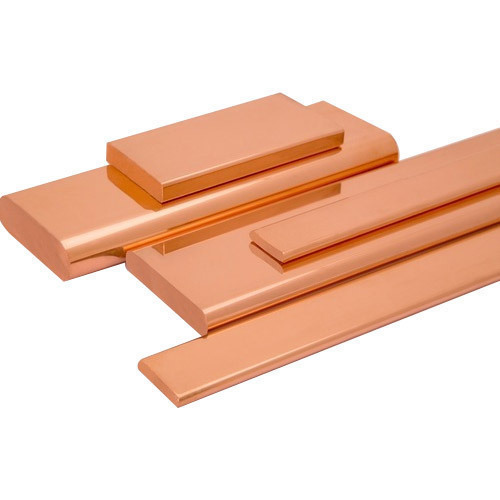

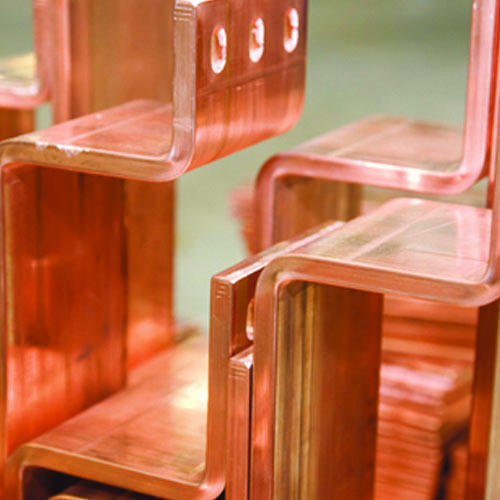

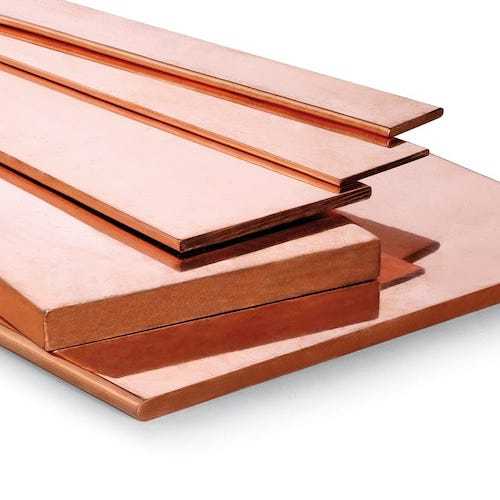

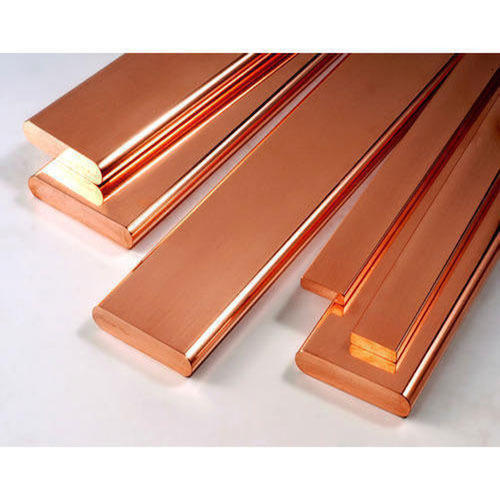

Copper Bus Bar/Earth Bar

Grade: C1020,  C1100, etc.
Width: 5 mm - 250 mm
Thickness: 1 mm - 70 mm
Description Technical Information Packaging More Review
Description

Guangdong Metal Corporation is a leading Copper Bus Bar / Earth Copper Strip manufacturer and supplier.

Copper bus bar is a major species in copper processing. The copper bus bar has high mechanical properties, good electrical conductivity, thermal conductivity, excellent corrosion resistance, electroplating, brazing, beautiful metallic luster and good forming and processing properties, so it is made of various kinds. Power transmission and transformation, electrical equipment, etc. have been widely used in the power field. In recent years, with the sustained and rapid development of the national economy, the production and consumption of copper bus bar in China has also increased substantially, and the quality requirement for copper bus bar has also been continuously improved.

The copper bus bar or copper bar is an indispensable conductive material for manufacturing motor windings, high and low voltage electrical appliances, switch contacts, and wires for power distribution and installation.

If you want to know more about our copper products or Copper Bar price please feel free to contact us, we will reply you within 24 hours.





  • 1) Grade: C1020, C1100, etc.

    2) Normal Sizes:3mm*25mm*50m, 3mm*25mm*15m, 6mm*50mm*50m (or customized as your needs)

    3) Width: 5 mm - 250 mm or custom

    4) Thickness: 1 mm -70 mm or custom

    5) Cross section up to 7500 mm2

    6) Length: up to 9500 mm (depending the cross section), with a standard length tolerance of 100 mm

    Upon demand this length tolerance could be 3 mm. Standard tolerances for straightness and edgewise bow: 1.5 mm/m

    7) Material: Cu-OF / Cu-ETP

    8) Cu content: min. 99.90%

    9) Shape: trapezoidal bus bar (soft), trapezoidal bus bar TTY( hardness), shaped bus bar (soft), shaped bus bar YTY (hardness), etc.

    10) Temper: Semi-hard

  • 1) Reduces System Cost

    2) Improves Reliability

    3) Increases Capacities

    4) Low Contact Resistance

    5) Eliminates Wiring Errors

    6) Provides Lower Inductance

    7) Provides Lower Impedance

    8) Provides Denser Packaging

    9) Provides Wide Variety of Interconnection Methods

    10) Improves Thermal Characteristics

  • 1) Melting Furnace

    2) Hot Rolling Mill

    3) Milling Line

    4) 4 High /6 High Reversing Cold Rolling Mill

    5) 12 High /20 High Finish Rolling Mill

    6) Pickling Line

    7) Degreasing Line

    8) Annealing Facility

    9) Tension Leveler Line

    10 Punching

  • 1) Earth ground

    2) Power distribution

    3) Power conversion

    4) Telecommunication

    5) Energy management

    6) Power supply

    7) Medical

    8) Transportation

    9) Automotive industries

Technical Information

Chemical Composition and Oxygen Content:

(Chemical Composition %, the content of microelement is less than or equal to)

Cu+Ag



Resistivity of Copper Bus Bar (Shaped Copper Bus Bar):

The surface hardness of Trapezoidal bus bar shall be HB80—105, less than 206MPa, and elongation shall not below 35%.

Size Scope: T ≤ 24, H ≤ 150, H / t ≤ 50



Size Tolerance (Unit: mm) of Copper Bus Bar / Earth Copper Strip

Including angel of trapezoidal bus bar shall be produced according to the sample. The spacing between the two sides shall be same with the sample and below or equal to the size of feeler gauge in the form.

Shape Tolerance When the length of trapezoidal bus bar is less than 500m, its facies medialis tortuosity shall not exceed 2.5mm; while, when the length is less than 1m, its straightness shall be as follows:

a) When a>2" and H>50mm, straightness≤ 2mm

b) When a≤2" and H≥50mm, straightness≤3mm



Manufacturing of Copper Bus Bar / Earth Copper Strip

Packaging

Packaging of Copper Bus Bar / Earth Bar​:

Guangdong Metal Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1) Guangdong Metal Standard

2) Customization



More

Applications of Copper Bus Bar / Earth Copper Strip:

1) Copper Bus Bar / Earth Copper Strip for Earth / earthing / ground

2) Copper Bus Bar / Earth Copper Strip for Power distribution

3) Copper Bus Bar / Earth Copper Strip for Power conversion

4) Copper Bus Bar / Earth Copper Strip for Telecommunication

5) Copper Bus Bar / Earth Copper Strip for Energy management

6) Copper Bus Bar / Earth Copper Strip for Power supply

7) Copper Bus Bar / Earth Copper Strip for Medical

8) Copper Bus Bar / Earth Copper Strip for Transportation

9) Copper Bus Bar / Earth Copper Strip for Automotive industries
