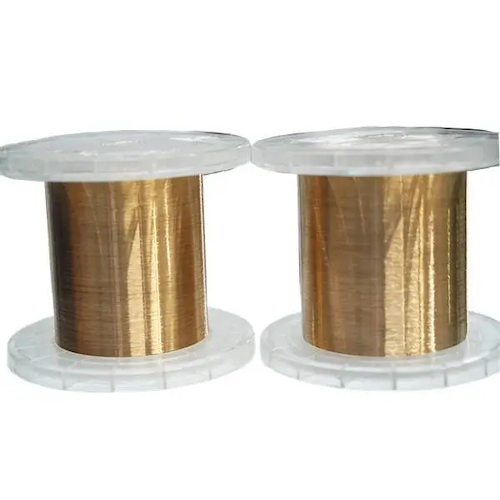

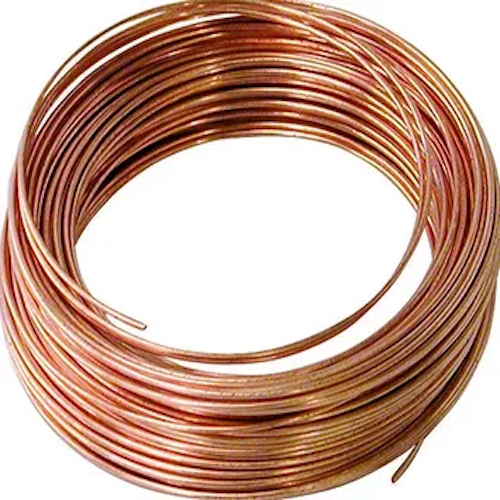

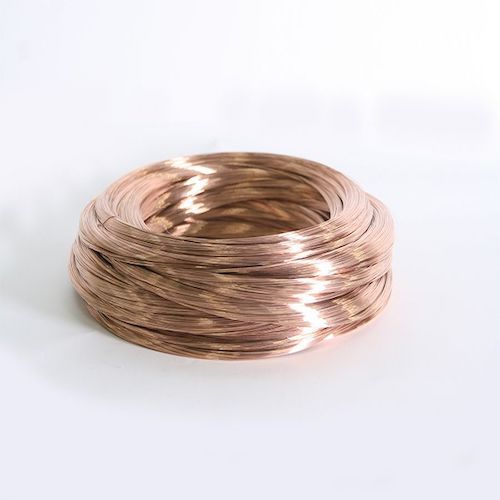

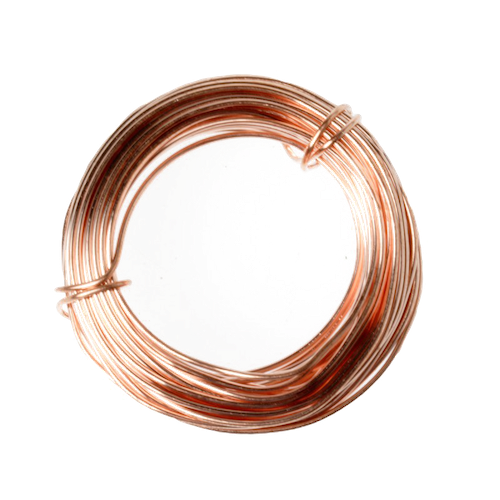

Beryllium Copper Wire

Grade: C17200,C17300, C17510, C17500, CuBe2
Standard: ASTM B197
Size: 0.1~8.0mm
Description Technical Information More Review
Description

Guangdong Metal Corporation is a leading Beryllium Copper wire manufacturer and supplier.

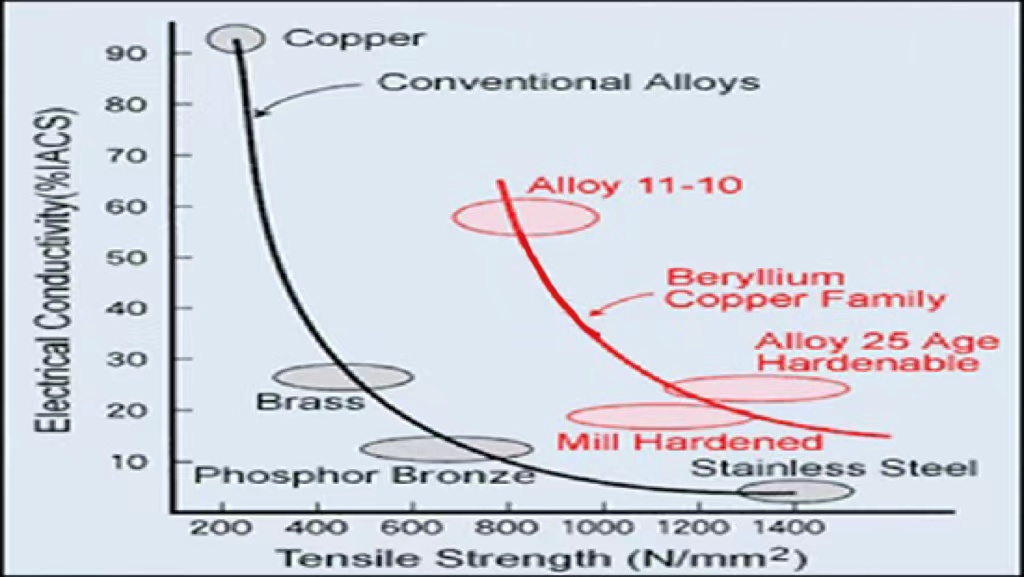

Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 200 ksi, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.

If you want to know more about our beryllium copper wire or other copper alloy wire price please feel free to contact us, we will reply you within 24 hours.



  • 1.Grade: C17200, C17300, C17500, C17510, CuBe2

    2.Standard: ASTM B197

    3.Size: 0.1~8.0mm

    4.Physical Properties

    Density (g/cm3): 0.302Ib/in3 at 68F

    Specific Gravity: 8.36g/cm3

    Melting Point(Liquidus): 1800F

    Electrical Resistivity:: 46.2 ohms/cmil/ft@68F

    Electrical Conductivity: 22%IACS@68F(heat-treated)

    Modulus Elasticity in Tension: 18500ksi

  • 1. High thermal conductivity

    2. High corrosion resistance, especially suitable for polyoxyethylene (PVC) products mold.

    3. High hardness, wear resistance and toughness, as inserts used with mould steel and aluminum can make the mold play a highly efficient, prolong the service life.

    4. Polishing performance is good, can achieve high mirror surface precision and complicated shape design.

    5. Good tackiness resistance, easy to welding with other metal, easy to machining, there is no need additional heat treatment.

  • 1) Chemicals

    2) Tensile Strength

    3) Elongation

    4) Diameter

    5) Conductivity

  • 1)Electrical Industry: Electrical Switch and Relay Blades, Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors, Contact Bridges, Belleville Washers, Navigational Instruments, Clips

    2)Fasteners: Washers, Fasteners, Lock Washers, Retaining Rings, Roll Pins, Screws, Bolts

    3)Industrial: Pumps, Springs, Electrochemical, Shafts, Non Sparking Safety Tools, Flexible Metal Hose, Housings for Instruments, Bearings, Bushings, Valve Seats, Valve Stems, Diaphragms, Springs, Welding Equipment, Rolling Mill Parts, Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear Plates on Heavy Equipment.

Technical Information

Mechanical property of Beryllium Copper Wire(after heat treatment):

More

Application of Beryllium Copper Wire:

1)Electrical Industry: Electrical Switch and Relay Blades, Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors, Contact Bridges, Belleville Washers, Navigational Instruments, Clips

2)Fasteners: Washers, Fasteners, Lock Washers, Retaining Rings, Roll Pins, Screws, Bolts

3)Industrial: Pumps, Springs, Electrochemical, Shafts, Non Sparking Safety Tools, Flexible Metal Hose, Housings for Instruments, Bearings, Bushings, Valve Seats, Valve Stems, Diaphragms, Springs, Welding Equipment, Rolling Mill Parts, Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear Plates on Heavy Equipment.



Advantage and features of Beryllium Copper Wire:

1. High thermal conductivity

2. High corrosion resistance, especially suitable for polyoxyethylene (PVC) products mold.

3. High hardness, wear resistance and toughness, as inserts used with mould steel and aluminum can make the mold play a       highly efficient, prolong the service life.

4. Polishing performance is good, can achieve high mirror surface precision and complicated shape design.

5. Good tackiness resistance, easy to welding with other metal, easy to machining, there is no need additional heat treatment.
